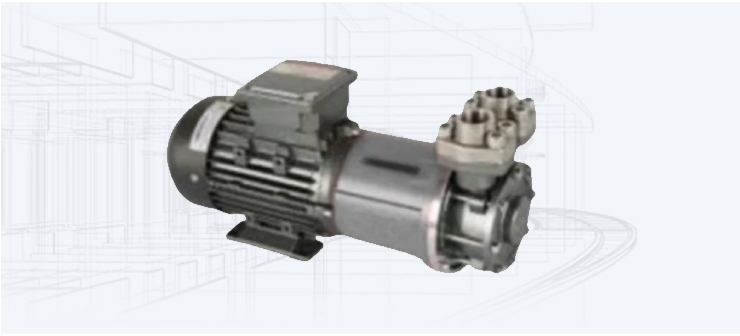

High Pressure Magnetic Drive Pump

High Pressure Magnetic Drive Pump

Seal-less. Leak-proof. Engineered for Performance

Precision Sealless Pumps Pvt. Ltd. offers High Pressure Magnetic Drive Pumps that deliver unmatched performance, durability, and safety in the most demanding applications. Built on innovative seal-less technology, our magnetic drive pumps eliminate leakage, minimize maintenance, and maximize operational efficiency—making them ideal for high-pressure chemical, pharmaceutical, petrochemical, and hazardousliquid handling systems.

What is a High Pressure Magnetic Drive Pump?

A High Pressure Magnetic Drive Pump is a seal-less centrifugal pump that uses powerful magnets to transfer torque from the motor to the impeller—without a physical shaft connection. This eliminates the need for mechanical seals and prevents fluid leakage, even at high pressures and temperatures. The result: zero leakage, high-safety, low-maintenance fluid transfer

Why Choose Precision's High Pressure Mag Drive Pumps?

Seal-less Design – 100% leak-proof operation with no mechanical seals.

Corrosion & Pressure Resistant – Constructed with high-grade stainless steel, engineered polymers, and robust containment shells for corrosive and high-pressure environments.

Energy Efficient – Low power losses due to optimized hydraulic and magnetic efficiency

Low Maintenance – Minimal wear parts, no seal replacement, and no alignment issues.

Custom Engineered – Tailored pump configurations to suit your application and system requirements

Applications

Our High Pressure Magnetic Drive Pumps are trusted across critical industries:  Chemical Process Plants
• Pharmaceutical & API Units
• Petrochemical Refineries
• Effluent & Wastewater Treatment
• Electroplating & Surface Treatment
• Hazardous & Toxic Fluid Transfe

Key Specifications

Parameter	Details
Max Flow	Up to 2000 GPM (450 m³/hr)
Max Head	Up to 430 ft (130 m)
Working Pressure	Up to 285 psig (20 bar)
Liquid Temperature	-150°F to +800°F (-100°C to +425°C)
Power Range	Up to 200 HP (150 kW)
Speed	Up to 2900 rpm
Bearings	SiC / SiC-X (for dry-run protection)

Impeller	Enclosed design
Magnets	Neodymium or Samarium Cobalt
Flange Options	150lb or 300lb RF ANSI Flanges
Motor Type	NEMA / IEC frame mounted

Working Principle

1. Motor Rotation generates torque.
2. Drive Magnet on motor shaft creates magnetic field.
3. Driven Magnet on impeller receives torque through the containment shell.
4. Impeller Rotates to pump liquid—without physical shaft connection.
5. No Leakage due to a robust containment shell isolating the process fluid from the motor.

Global Quality, Local Service

As a leading High Pressure Magnetic Drive Pump manufacturer in India, we export globally to:  Middle East  Africa Southeast
• Asia
• Europe
• Americas

We ensure compliance with international standards, prompt support, and custom-engineered pumping solutions tailored to your plant needs.

Get in Touch

Looking for leak-proof, high-performance, and durable magnetic drive pumps? Contact Precision Sealless Pumps Pvt. Ltd. today for:
Technical consultation
Customized designs
Bulk orders and OEM partnership
