Precision Vertical Canned Motor Pumps are designed for applications where vertical installation is required, often due to space constraints or specific piping layouts. These pumps are an extension of our proven sealless canned motor pump technology, developed with technical expertise from Nikkiso Co., Ltd., Japan.

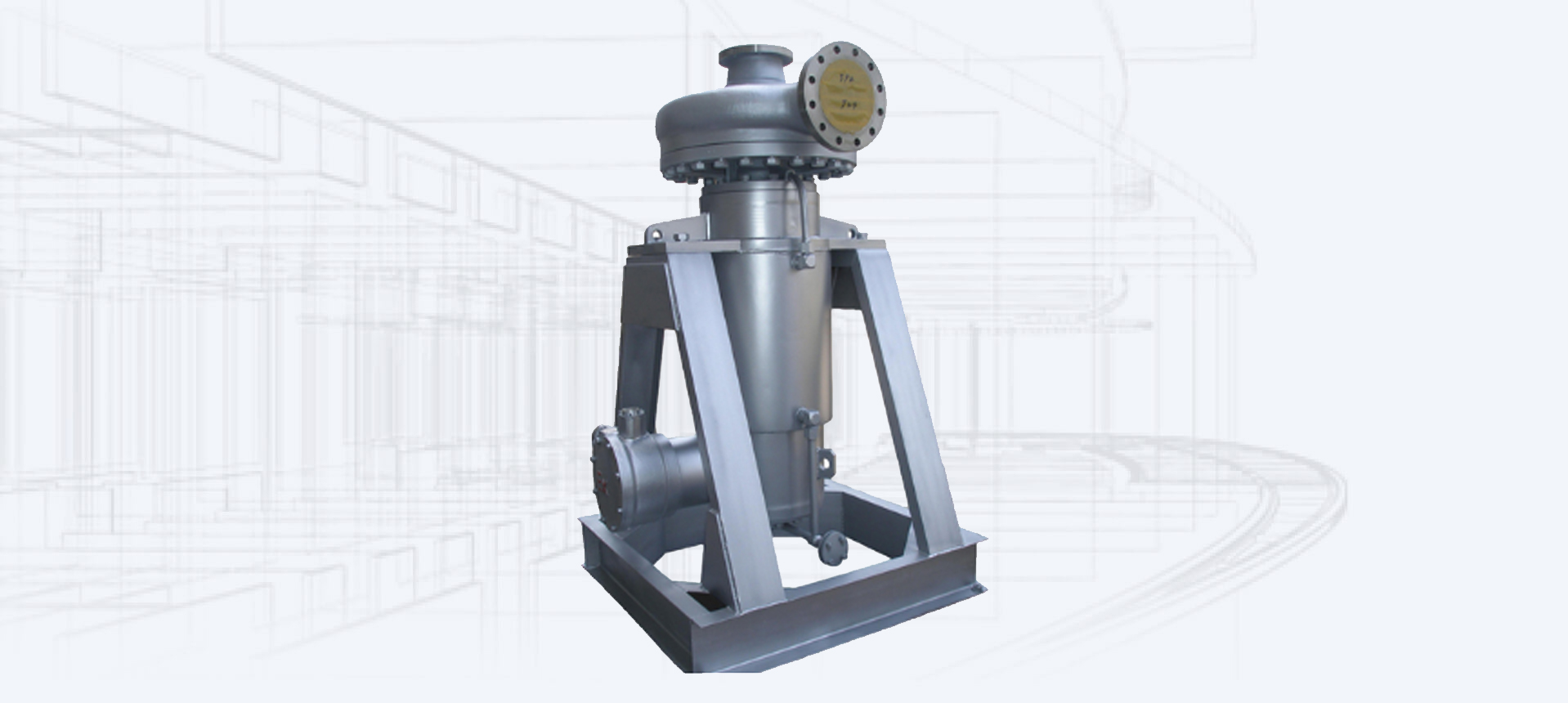

In a Vertical Canned Motor Pump, the motor and pump are integrated into a single, hermetically sealed vertical unit. The entire rotating assembly is immersed in the process liquid, eliminating the need for mechanical seals. The design ensures leak-free performance and reliable operation in demanding environments.

CASING

• Vertical orientation with axial suction and top discharge

• Smooth hydraulic passages ensure high efficiency

• Volute casing designed to connect with liner disc and adapte

IMPELLER

• Enclosed or semi-open design

• Statically and dynamically balanced

• Hydraulic balancing through automatic thrust balance arrangemen

• Auxiliary impeller for motor cooling and bearing lubrication

SHAFT

• Precision-machined stainless stee

• Supported by ceramic or carbon graphite sleeve bearings lubricated by the process flui

• Shaft includes return passage for internal circulation

ELECTRIC MOTOR

• Integrated vertical motor desig

• 2/4 pole, 3 phase, 415V, 50 Hz

• insulation class F, H, or C

• Flame-proof and explosion-proof options available

FEATURES

• Sealless, leak-proof design for hazardous fluids

• Internal circulation of process fluid for cooling and bearing lubrication

• Dry run protection, winding temperature detectors (RTD/Thermistor), and bearing wear monitoring

• Direction of rotation detection

MATERIAL OF CONSTRUCTION

• Casing & Impeller: Stainless Steel, CF8M, CF3M
• Stator Liner & Rotor Sleeve: Hastelloy, INCONEL, SS316L
• Bearings: Ceramic, Carbon graphite
• Thrust & Shaft Sleeves: Tungsten Carbide or SS316L with HCR/Ceramic coating

ADVANTAGES

• Compact vertical design saves floor space
• Ideal for sump applications and areas with restricted horizontal space
• No external seal systems or couplings
• Minimal maintenance requirements

APPLICATIONS

• Chemical and Petrochemical Industries
• Pharmaceuticals
• Fertilizer Plants
• Nuclear and Power Plants
• Cryogenic and Refrigeration Services

TECHNICAL RANGE

• Delivery size: Up to 250 mm
• Capacity: Up to 300 m3/hr
• Head: Up to 135 m
• Temperature Range: -40°C to +270°C
• Working Pressure: Up to 120 Kg/cm²
• Speed: 1500 / 3000 RPM (Synchronous)
• Voltage: 415V, 50 Hz, 3 Phase

Vertical Canned Motor Pumps from Precision Sealless Pump offer high reliability, zero leakage, and efficient performance tailored for vertical process applications across diverse industries.

Vertical canned motor pumps are preferred for all liquids containing gas or vapours. The gas or vapour settled in the pumps must find there way out even when the pump is stopped . The heat in the motor is often high enough to vaporize all the liquid in the pump and the vapour may occupy all the space in the pump & motor . This will cause quick bearing wear on sestart of the pump, precision vertical canned pump avoids this by ensuring gas venting at the top of pump . The vertical construction also minimizes radial on bearings by transferring load to axial direction and then floating the entire rooter via hydraulic thrust balancing .

Our Vertical Canned Motor Pump is designed for high-efficiency, leak-proof operation in various industrial applications. With a compact vertical configuration, this pump is ideal for space-constrained environments while ensuring maximum reliability and performance.

Key Features

• • Sealless & Leak-Proof Design: Eliminates the risk of fluid leakage, making it suitable for hazardous and high-purity applications.
• • Vertical Space-Saving Configuration: Ideal for installations with limited footprint.
• • Canned Motor Technology: Provides quiet operation with minimal vibration and extended service life.
• • Corrosion-Resistant Materials: Handles aggressive and volatile liquids efficiently.
• • Energy Efficient: Reduces power consumption and lowers operational costs.
• • Minimal Maintenance: No mechanical seals, resulting in reduced downtime and longer operational life.
