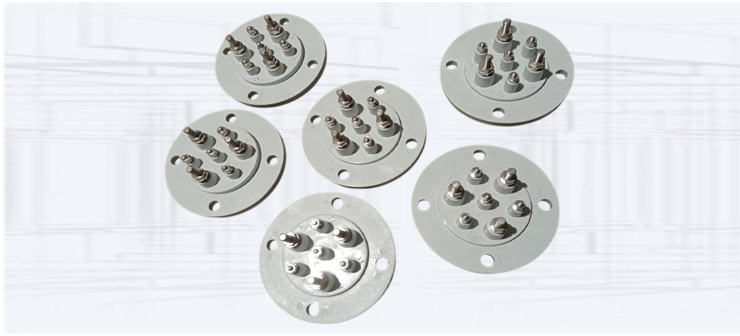

Canned Motor Pump Terminal Plate
Overview
The Terminal Plate is one of the most critical components of a Canned Motor Pump (CMP). It serves as the electrical interface between the motor winding (inside the hermetically sealed stator housing) and the external power supply, ensuring safe, reliable, and leak-proof current transfer. Designed with high-grade insulating and sealing materials, our terminal plates guarantee excellent dielectric strength, thermal resistance, and long
Key Features?
- Hermetically Sealed Design – Prevents any leakage of process fluid or ingress of moisture.
- High Electrical Insulation – Manufactured with epoxy resin / ceramic bushings to provide robust insulation.
- Thermal Resistance – Capable of withstanding high operating temperatures typical in CMP applications.
- Pressure Resistant – Engineered to handle the internal pressure of the pump without deformation or leakage.
- Easy Connection – Terminal studs or sockets designed for quick and secure power cable connection.
- Corrosion Resistant – Constructed with stainless steel hardware and epoxy coating for long-lasting performance.
Technical Specifications (Typical Range – Customizable)
- Material of Plate: Epoxy resin cast / Ceramic insulated with metallic support
- Conductor Type: Copper / Silver-plated copper terminals
- Insulation Resistance: > 100 MΩ at 500V DC
- Dielectric Strength: Up to 3.5 kV AC for 1 minute
- Temperature Range: –20°C to +180°C (special designs available up to +250°C)
- Pressure Rating: Up to 40 bar (depending on pump rating)
- Ingress Protection: IP 55 – IP 68 (as per design)
- Cable Entry: Gland type / Plug-in type / Customized on request
Applications
- Petrochemical & Chemical Plants
- Nuclear & Thermal Power Plants
- Pharmaceuticals & Fine Chemicals
- Refrigeration & Cryogenic Applications
- Hazardous Area Installations (Explosion-proof design available)
Why Choose Precision Sealless Pumps Pvt. Ltd.?
- Custom Engineering: Tailor-made designs for different voltages, frequencies, and hazardous area classifications (Ex-proof / Flameproof).
- Tested Reliability: Each terminal plate undergoes dielectric, insulation resistance, and pressure tests before dispatch.
- Global Standards: Manufactured in compliance with IEC / IS / NEMA / ATEX standards.
- Cost-Effective: Competitive pricing without compromising safety and performance.
