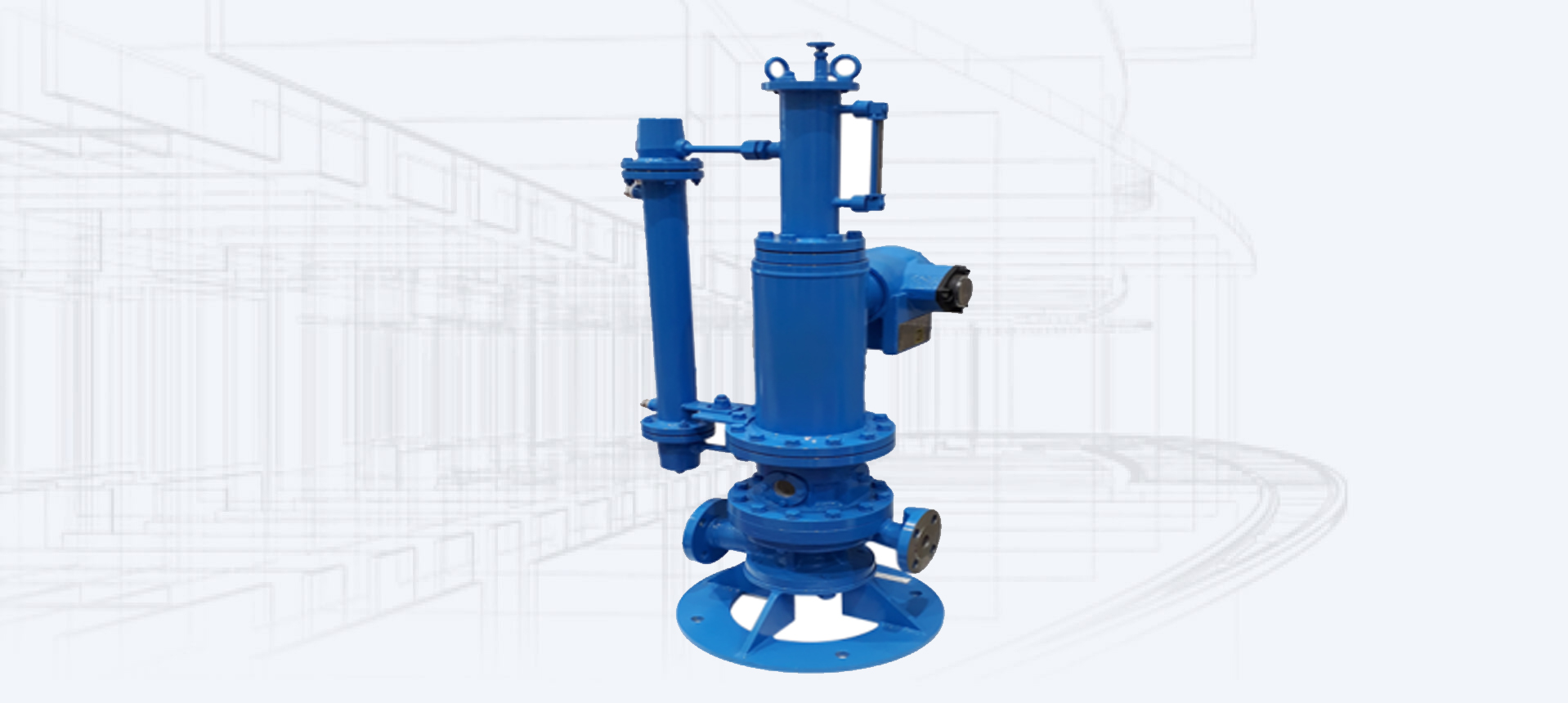

Vertical Slurry Canned Motor Pump
Leak-Free. Heavy-Duty. Maintenance-Friendly.
Precision Sealless Pumps Pvt. Ltd. proudly introduces its Vertical Slurry Canned Motor Pump, engineered specifically for handling abrasive, corrosive, and high-density slurry fluids with zero leakage. Designed using advanced Japanese technology from Nikkiso Co. Ltd., Japan, our vertical slurry pumps combine robust performance with maintenance-free operation in demanding industrial environments.
What is a Vertical Slurry Canned Motor Pump?
A Vertical Slurry Canned Motor Pump is a sealless centrifugal pump, where both the pump and motor are integrated into a single, hermetically sealed vertical unit. Unlike conventional pumps, this design eliminates the need for mechanical seals, preventing leakage and ensuring superior reliability when handling high-solid-content slurry, corrosive chemicals, or hazardous fluids.
Key Features
- • Vertical Design: Space-saving, ideal for sump, pit, or tank-mounted operations in slurry transfer applications.
- • Sealless Construction: Eliminates mechanical seal failures and ensures 100% leak-proof performance.
- • Heavy-Duty Slurry Handling: Designed to handle solids-laden and abrasive slurries with minimal wear.
- • Self-Cooling Motor: Pumped fluid circulates through the motor housing to cool the motor and lubricate bearings, eliminating external cooling needs.
- • Hermetically Sealed Motor: Ensures safe handling of hazardous fluids, with no risk of emissions.
- • Long Life Bearings: Equipped with ceramic or carbon graphite sleeve bearings, designed for extended operation in harsh slurry conditions.
Construction Details
- • Casing: Robust, corrosion-resistant stainless steel or CF8M/CF3M construction with axial suction and top centerline discharge.
- • Impeller: Enclosed or semi-open, dynamically balanced for smooth slurry flow; optional auxiliary impeller for better bearing lubrication.
- • Shaft: Precision-machined stainless steel supported by durable, liquid-lubricated bearings.
- • Motor: Integrated 2/4-pole, 3-phase, 415V, 50 Hz motor with insulation class F/H/C; flame-proof/explosion-proof variants available.
- • Flanges: ANSI B16.5 Class 300 standard; DIN/IS/BS options on request.
Advanced Safety Features
- • Dry run protection
- • Winding temperature detectors (RTD/Thermistors)
- • Bearing wear monitors (mechanical/electrical)
- • Overload, underload & phase protection
- • Direction of rotation monitor
Material of Construction
| Component |
Material Options |
| Casing |
SS316, CF8M, CF3M |
| Impeller |
SS316, CF8M, CF3M |
| Stator Liner |
Hastelloy, Inconel, SS316L |
| Rotor Sleeve |
Hastelloy, Inconel, SS316L |
| Bearings |
Ceramic, Carbon Graphite |
| Thrust Washer |
Tungsten Carbide / SS316L with HCR/Ceramic Coating |
| Shaft Sleeve |
Tungsten Carbide / SS316L with HCR/Ceramic Coating |
Performance Range
- • Delivery Size: Up to 250 mm
- • Capacity: Up to 1000 m³/hr
- • Head: Up to 135 meters
- • Operating Temperature: -40°C to +270°C
- • Working Pressure: Up to 120 kg/cm²
- • Motor Speed: 1500 / 3000 RPM
- • Voltage: 415V, 3 Phase, 50 Hz
Applications
- • Slurry Transfer in Chemical & Fertilizer Plants
- • Effluent Handling in Metal & Mining Industries
- • Corrosive Sludge in Nuclear or Power Plants
- • Acidic Slurry in Petrochemical Units
- • High Viscosity Fluids in Pharmaceutical Industries
Why Choose Precision Vertical Slurry Canned Motor Pumps?
- ✅ 100% Leak-Proof Operation
- ✅ Suitable for High Solid Content Fluids
- ✅ Explosion-Proof Options Available
- ✅ Made in India – Built to Global Standards
- ✅ Customization Available as per Application
- ✅ Timely Delivery and Service Support
Need a Reliable, Leak-Free Slurry Pumping Solution?
Contact Precision Sealless Pumps Pvt. Ltd. today for your Vertical Slurry Canned Motor Pump requirements.
