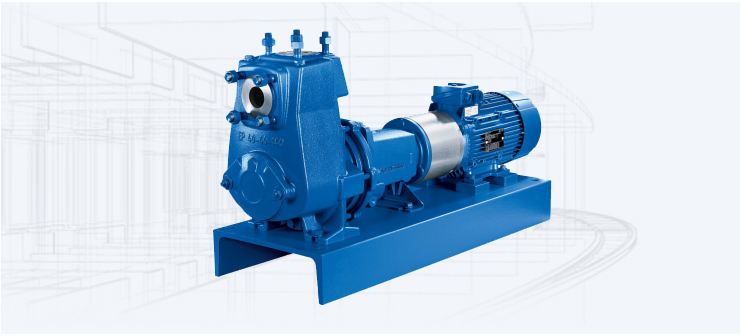

Self-Priming Centrifugal Pump

Self-Priming Centrifugal Pump

Reliable, Efficient, and Ready-to-Run by Precision Sealless Pumps Pvt. Ltd.

When time, reliability, and quick-start pumping are critical, Self-Priming Centrifugal Pumps from Precision Sealless Pumps Pvt. Ltd. are the answer. Designed for trouble-free operation even when the suction line is not primed, these pumps are ideal for applications where frequent priming is inconvenient or impossible

What is a Self-Priming Centrifugal Pump?

A Self-Priming Pump is a specially designed centrifugal pump that has the ability to evacuate air from the suction line and lift liquid from below pump level without external priming. It retains a certain amount of liquid in the casing to create a vacuum and initiate pumping during startup.

Applications of Self-Priming Centrifugal Pumps

Our Self-Priming Pumps are trusted across diverse industries including:

• • Wastewater Treatment
• • Effluent Handling
• • Chemical & Process Industries
• • Tanker Unloading
• • Agriculture & Irrigation
• • Marine and Shipyards
• • Refineries and Power Plants

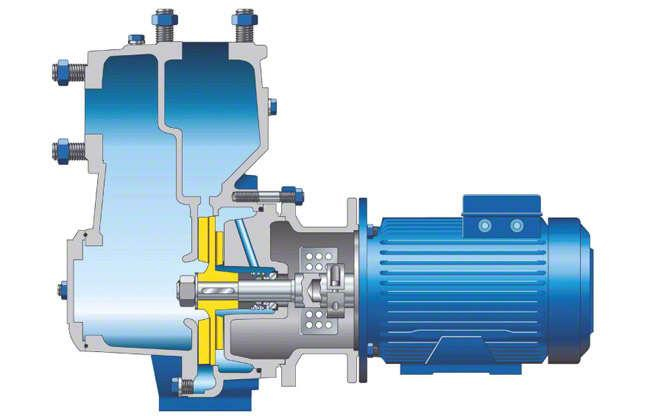

Construction Details

• • Casing: Heavy-duty cast iron or stainless steel, with volute profile for smooth flow and minimum losses.
• • Impeller: Dynamically balanced semi-open or enclosed type impeller for solids handling and higher efficiency.
• • Shaft: High-precision stainless steel shaft supported by heavy-duty bearings.
• • Seal: Single/double mechanical seal with options for gland packing, depending on fluid compatibility.
• • Bearings: Deep groove ball bearings for long life and smooth performance.
• • Direction of Rotation: Clockwise when viewed from the driving end.
• • Mounting: Horizontal base-mounted design for stability and ease of installation.

Technical Range

Parameter	Range
Delivery Size	Up to 150 mm
Capacity	Up to 250 m³/hr
Head	Up to 60 meters
Temperature Range	-10°C to +120°C
Working Pressure	Up to 10 kg/cm²
Speed	1450 / 2900 RPM
Voltage	415V, 3 Phase, 50 Hz

Material Options

Part	Material Options
Casing	CI, SS-304, SS-316, CF8M
Impeller	CI, Bronze, SS-304, SS-316
Shaft	SS-410 / SS-316
Seal Faces	Carbon vs Ceramic / TC vs TC
Gaskets & O-Rings	Viton, EPDM, PTFE

Why Choose Precision’s Self-Priming Pumps?

• ✔ Engineered for Demanding Conditions
• ✔ Customizable Designs for Your Application
• ✔ Made in India with International Standards
• ✔ Robust After-Sales Support and Service
• ✔ Efficient, Durable & Cost-Effective Solutions

Your Trusted Partner in Flow Solutions

At Precision Sealless Pumps Pvt. Ltd., we specialize in reliable, performance-driven pump solutions tailored for chemical, wastewater, process, and utility applications. If you're looking for a durable, efficient, and easy-to-maintain self-priming pump, look no further.

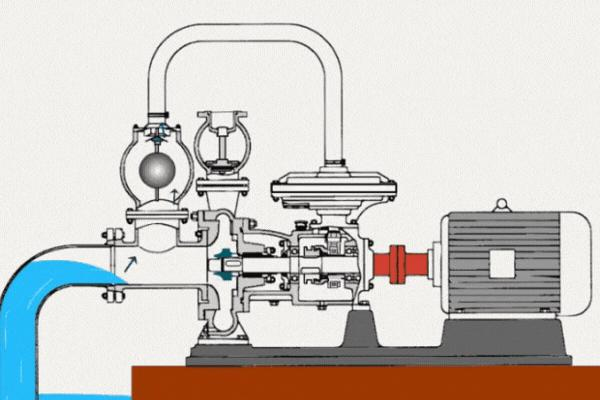

Centrifugal pumps which have the capability to pump mixtures of liquids with entrained gas, as well as liquids, which have the ability to vent the suction line of air, are deemed to be self-priming pumps. Self- Priming pumps operate by fluid recirculating within the pump head, which creates a vacuum.
