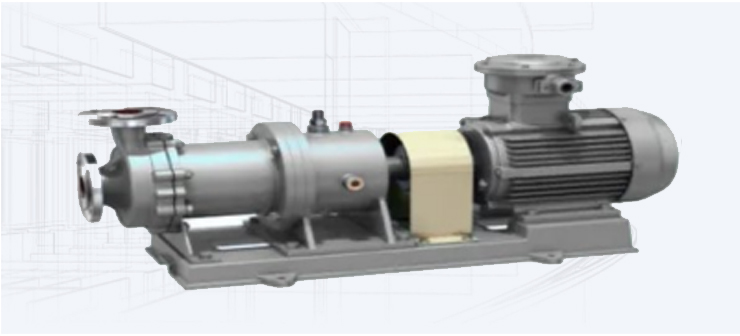

High Temperature Magnetic Drive Pump

High Temperature Magnetic Drive Pump

Precision Engineered for Extreme Heat & Hazardous Fluids Manufacturer, Supplier & Exporter – PRECISION SEALLESS PUMPS PVT. LTD

Product Overview

Our High Temperature Magnetic Drive Pumps are designed to handle the most demanding applications, where high temperatures, aggressive chemicals, and reliability are critical. With a robust seal-less design, these pumps eliminate the need for mechanical seals, reducing maintenance, preventing leaks, and improving operational safety. Ideal for applications involving toxic, corrosive, high-temperature, or hazardous liquids, these pumps ensure long-lasting performance, worker safety, and environmental protection.

Parameter	Details
Maximum Flow	Up to 2000 GPM
Maximum Head	Up to 470 Feet
Liquid Temperature	150°F to +800°F (–100°C to +427°C)
Maximum Power	Up to 200 HP
Working Pressure	Up to 285 psig
Speed	Up to 3550 RPM
Impeller	Enclosed
Bearings	SiC / SiC-X (for dry-run or upset conditions)
Magnet Materials	Neodymium or Samarium Cobalt (High Temp Rated)
Motor Mounting	NEMA or IEC Frame
Connections	ANSI Flanges 150# RF std. / Optional 300# RF

Design Features:

• Seal-less magnetic drive eliminates leakage and mechanical seal failures.
• Straddle-mounted inner magnet system reduces shaft & bearing loads.
• Slip-fit construction allows easy maintenance with no special tools.
• Large internal flow paths handle solids efficiently:
• • 1% solids @ 500 microns
  • 5% solids @ 100 microns
  • Optional self-cleaning strainer for higher solids content
• Available with leak detection systems for extreme safety.
• Handles hot edible oils, aggressive acids, or noxious fluids with ease
• Optional features include:
• • Secondary Containment
  • Steam Jackets
  • External Flush
  • Recirculated Flush & Vent
  • Vortex Breakers
  • Centerline Mounting

Materials of Construction:

• • 304 Stainless Steel
• • 316 Stainless Steel
• • Duplex Stainless Steel
• • Alloy 20
• • Alloy B & C

Applications:

• • Chemical & Petrochemical Plants
• • Heat Transfer Fluids
• • Edible Oil Handling
• • Refining
• • Pharmaceuticals
• • Hazardous Chemical Transfer
• • Thermal Oil Systems

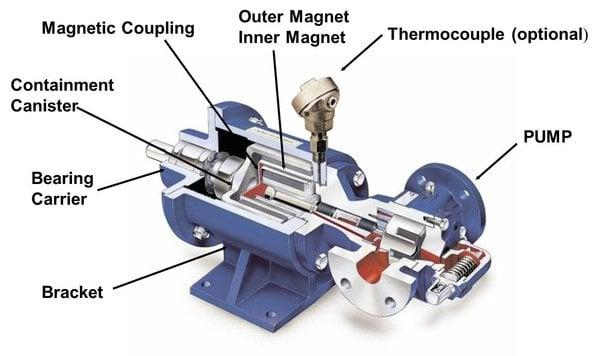

The Magnetic drive Pump is a centrifugal pump which eliminates the requirements of a mechanical seal or other sealing device due to the presence of hermetically sealed electric motor mounted on single shaft ensuring no leakage. High temperature magnetic drive pumps are specifically designed to handle fluids at elevated temperatures while maintaining the benefits of a sealless design.
